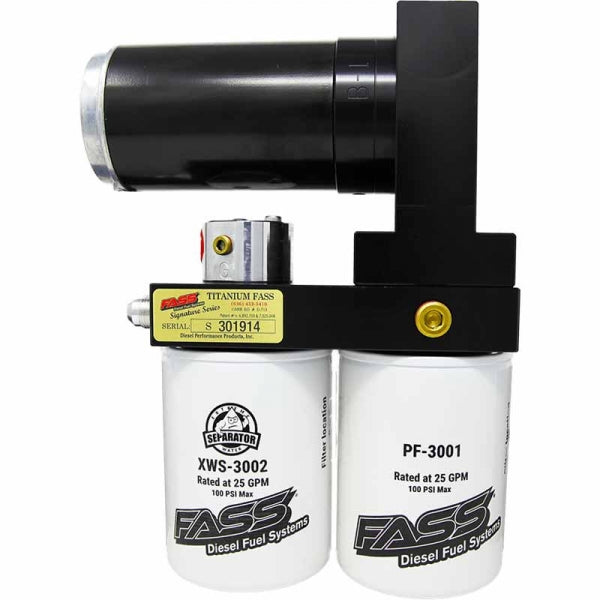

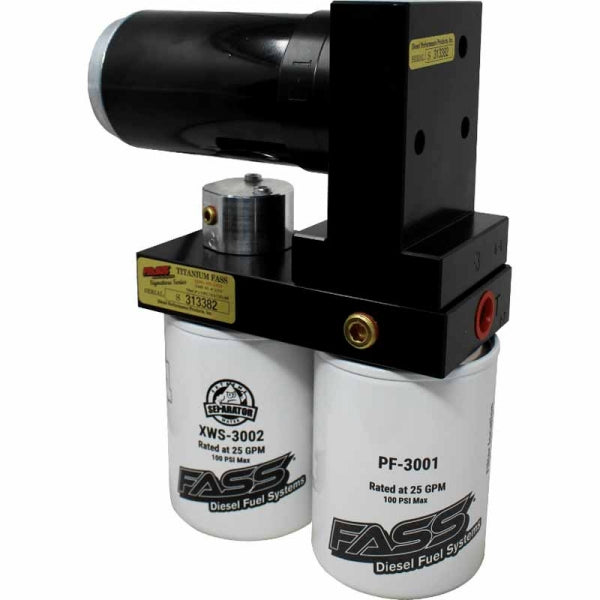

FASS TSF14180F140G TITANIUM SIGNATURE SERIES 140GPH FUEL SYSTEM VEHICLE FITMENT: 1999-2007 FORD F-250/350 7.3L/6.0L DIESEL (STOCK TO MODERATE)

Add the FASS TSF14180F140G Titanium Signature Series 140GPH Fuel System from XDP to your 1999-2007 Ford F-250/350 7.3L/6.0L Diesel (Stock To Moderate). Rated at 140 gallons per hour, at 60-65 PSI, the Titanium Signature Series System can support your diesel engine with enough fuel for up to 700 HP multiple fueling System upgrades. A Titanium Signature Series fuel System also offers advanced filtration benefits that will help protect your fuel injection Systems, effectively extending the life of your Diesel Injectors. These Benefits include an improved filtration rating of 2 Microns, a built-in water separation filter, and FASS Diesel Fuel Systems patented air/vapor removal process. Some diesel engines are known for having injector failure issues; this can be caused by several different factors and FASS Filtration Systems is designed to eliminate those that are fuel related. This kit includes a Bulkhead Fitting and Suction Tube. Machined from 6061 T-6 Billet Aluminum, the Bulkhead fitting functions as both a suction tube and return and features a 5/8" Suction Tube along with a 1/2" Fuel Return Port. This new and improved version of our previous Suction Tube allows the user to plum their FASS return line directly to their bulkhead fitting, eliminating all cutting of the filler neck and significantly speeding up the installation process. The pickup tube is fabricated out of PTFE Teflon which can be easily cut to adapt to different depths of fuel tanks. Properly installed, you can safely operate down to about 1/8 of a tank of fuel.

FASS Whisper Technology (FWT) was engineered to meet the stringent demands of today's quiet diesel engines. FASS Whisper Technology was in development and testing for over two and a half years to meet FASS Fuel System's high quality and durability standards. FASS Whisper Technology effectively and drastically reduces the sound levels of the Signature Series FASS Diesel Fuel System to a whisper while at the same time increasing fuel flow rates.

Performance Radius Cuts (PRC) are an advanced machining technique used to improve the flow of fuel through the FASS System by creating smooth flowing cuts within the aluminum housing. This prevents the reintroduction of air and vapor back into the fuel and to prevent eddy currents from forming within the corner of a 90-degree sharp angle. FASS Titanium Signature Fuel Systems are the only Fuel Air Separation System that incorporates these exclusive Performance Radius Cuts, some competitors commonly use T-Bone and square 90-degree fittings that can limit fuel flow, cause restrictions and reintroduce air back into your fuel.

Mass Flow Return (MFR) technology is used to continually polish your fuel by keeping a positive pressure on the fuel being delivered to the engine to prevent cavitation along with galling and scoring. Then returning the fuel, that's not yet needed, back to the tank after it has been passed through the filtration process, removing dirt, air, vapor and water. This means your fuel is being constantly polished (cleaned), guaranteeing that your diesel truck always has the cleanest fuel possible. The MFR in combination with the optional FASS Fuel Heater options will help ensure cold weather operations!

Bolt On Bracket Mounts old mounting styles required drilling or welding when mounting your new System. This has now been simplified with these bolt on brackets that utilize your factory bed bolt, the bolt that secures your truck bed to your frame. Mounting your Titanium Signature Series System takes only minutes, and all brackets are made from machined steel for superior support and strength.

FEATURES:

• Whisper Technology
• Bolt On Bracket Installation
• Preset 60-65 PSI Fuel Pressure
• Complete Replacement System
• 140 Gallons Per Hour Flow Rating
• 2 Micron Filtration Rating
• Improved Cold Weather Starts
• Fuel Mileage Improvement
• Improved Fuel Volume Delivery
• Smoother Engine Idle
• Optional Electric Heater Ports
• Optional Fuel Pressure Gauge Port
• Limited Lifetime Warranty
• 1,000,000 Mile Motor
• 30,000 Mile Filter Life Expectancy
• Removes Water, Air, & Debris From Diesel Fuel
• Protects and Extends The Life Of Your Injectors
